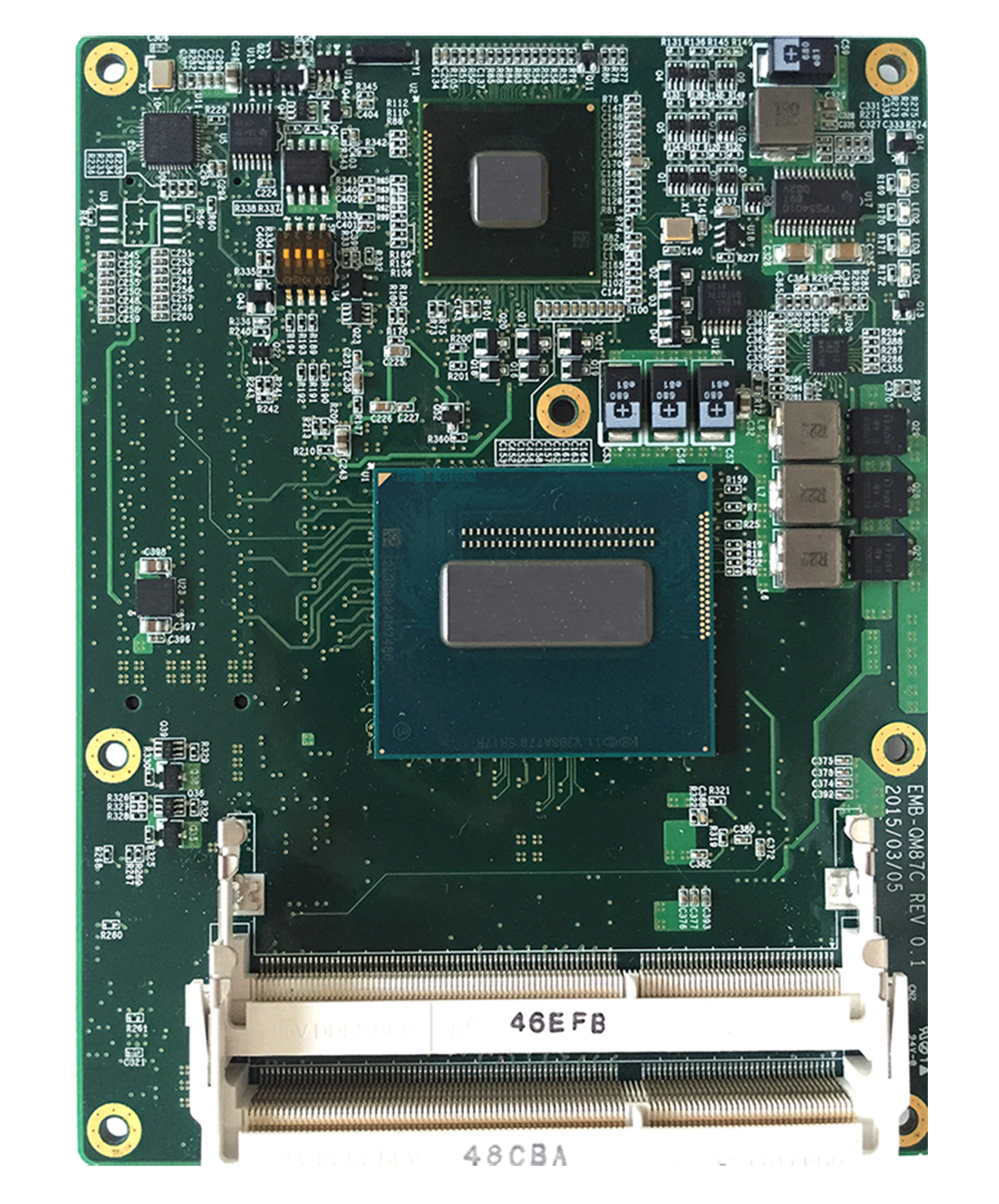

EMB-QM87 COM Express is an Intel® Haswell-based platform, engineered to overcome harsh shock and vibration, and other rugged environmental factors. COM Express, a computer-on-module (COM) form factor, is a highly integrated and compact Pin-out Type6 (125mm x 95mm). The product is designed for a long-term use, which allows it to be implemented in various applications, such as industrial computers, vision systems, gaming systems, digital signage players, POS, and medical computers. With the Intel® QM87 chipset, the EMB-QM87 COM Express is capable of responding to high-performance demands.

  • Intel® Core™ i5/i3
    Intel® Celeron® 2000E/2002E
  • 2 x DDR3L-1600 SO-DIMM up to 2 x 8 GB
  • Intel® Mobile QM87 (Core™ i5/i3)
  • 8 x USB 2.0 ports, 4 x USB 3.0 ports
  • COM Express Basic, Type 6
  • 2 x SATA Ⅱ ports, 2 x SATA Ⅲ ports
